Pharmaceutical Ultra-Pure Water Systems
Advanced Water Solutions for Pharma Excellence
Water plays a pivotal role in the manufacturing process of the pharmaceutical industry.
Ahura Aqua has more than 25 years of experience in providing High purity water systems & Ultra-pure
water solutions to the pharmaceutical Formulations, API, Parenteral & WFI manufacturing units.
Ultra-strict regulations make sure that the chemical composition of the water used in producing medicines
is highly regulated & monitored by the country specific pharmacopoeia.
Ahura Aqua’s High purity water systems for pharmaceutical water treatment solutions maintain that high
quality of ultra-pure water & always achieves the highest international pharmaceutical standards &
regulatory specifications such as USP/UKMHRA/USFDA/WHO/GMP.
Solutions for the Pharmaceuticals
Ensure Compliance with Advanced Pharma Water Solutions. Â Achieve the highest purity standards with our tailored water treatment systems. Schedule a Consultation Today!
PW & WFI Generation Systems
- Achieve USP; USFDA; EU. Phr; UKMHRA; JP; IP; WHO standards with our highly customized, automated & thoroughly tested systems.
- Easy & precise validation process with the help of detailed SOP, DQ, IQ, OQ, PQ, P&ID, Training manuals & support.
- Highly customizable automation & sophisticated SCADA software in sync with GAMP5 & 21CFR part 11 compliance.
- Ambient WFI is facilitated by the help of 4kDa 6kDa or 10kDa Post UF system.
- Comprehensive automation allows for total control over quality consistency by leveraging IIOT & customized remote monitoring & corrective software
- Basic automation includes pre set modes such as Production, Reject Re- circulation, Idle mode & SIP among other safety & efficiency bound automations
Purified Water Validation Check-Points
| Parameters | UOM | USP | EU.Phr | IP/WHO |
|---|---|---|---|---|
| pH | - | Non specific | Non specific | Non specific |
| Conductivity | μS/cm² @ 25°C | 1.3 | 4.3 | 1.3 |
| HM | mg/l | Non specific | <0.1 | Non specific |
| NO3 | mg/l | Non specific | <0.2 | Non specific |
| TOC | μg/l | <500ppb | <500 | <500 |
| Bacterial count | CFU/ml | <100 | <100 | <100 |
WFI Validation Check-Points
| Parameters | UOM | USP | EU.Phr |
|---|---|---|---|
| Endotoxins | EU/ml | <0.25 | <0.25 |
| Conductivity | μS/cm² | 1.3 @ 25°C | 1.1 @ 20°C |
| HM | mg/l | Non specific | <0.1 |
| NO3 | mg/l | Non specific | <0.2 |
| TOC | μg/l | <500ppb | <500 |
| Bacterial count (Guideline) |
CFU/100ml | <10 | <10 |
PW & WFI Storage
- Electropolished SS316L Tanks with heat jacket, automated for steam sanitization.
- Sanitary fittings include in-house orbital welding with bore-scope & videography certification for operational excellence.
- Instrumentation to maintain & control temprature levels, conductivity, flow & other critical values.
- Auto circulation mode actuated by level sensors, conductivity meters & other sophisticated alarm systems.
- Critical designing parameters include: Maintaining Peak Load, Return line velocity, 100% drainability.
PW & WFI Loop Distribution
- Electropolished SS316L tubes with steam or hot water sanitization ensure elimination of microbial colonies.
- Piping logic & flow is meticulously designed for each user point with zero dead legs.
- Auto circulation mode actuated by online conductivity meters.
- Post UF system ensures upto 6kDa MWCO compared to the EU/USP 10kDa.
- Peak consumption; Maintain accurate sloping degrees for return line velocity.
- ASME/BPE guidelines are followed with stringent QC structures within the organization.

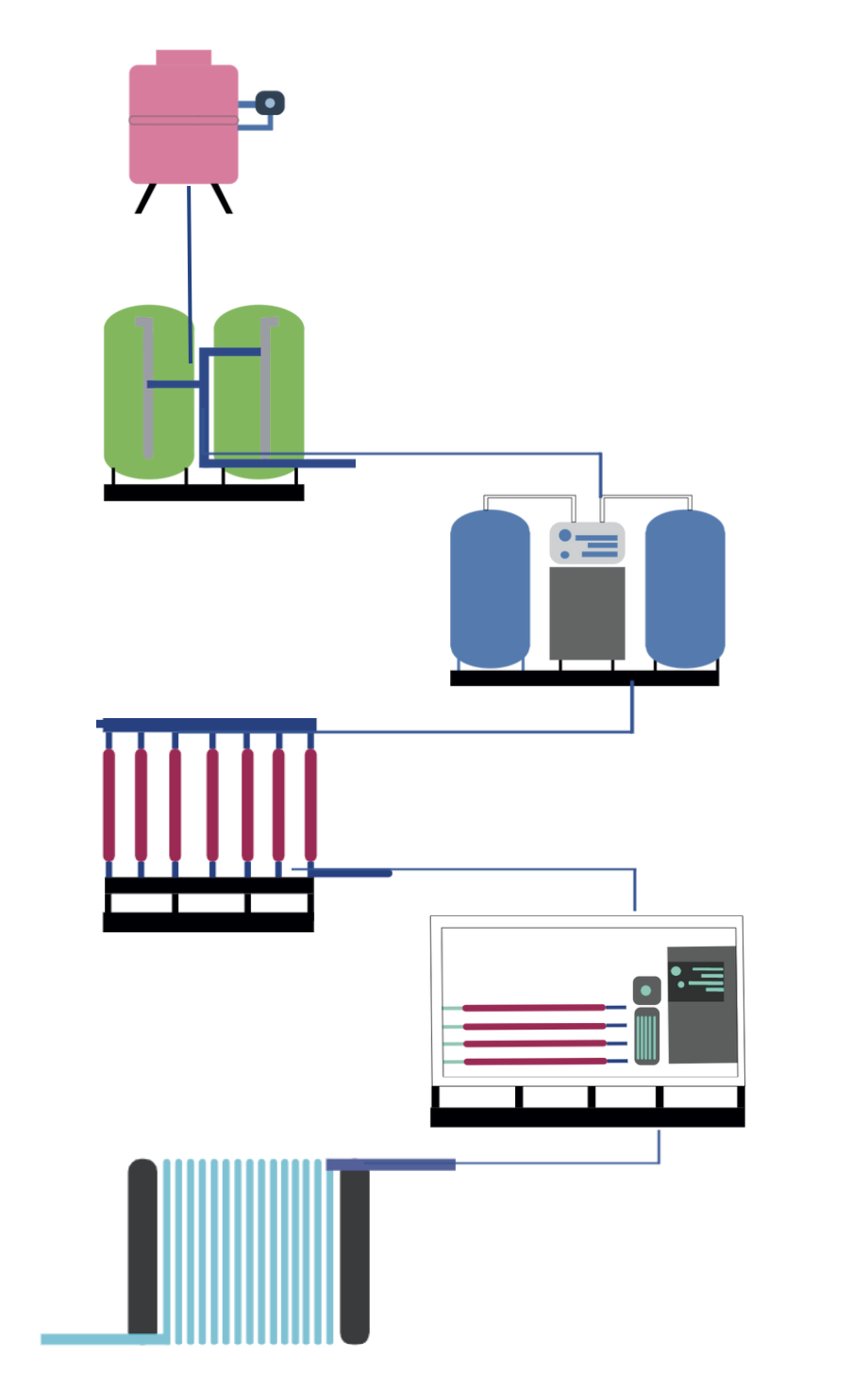

PWG Stream
Pressure Sand Filter: Eliminates TSS & Turbidity.
Softener: Eliminates Total Hardness (Calcium & Magnesium).
De-Mineraliser: Eliminates TDS & Inorganic salts.
Ultra-Filter: Filters TSS, Turbidity, Organics, Colloidal Silica, Microbial content.
Reverse-Osmosis: Eliminates TDS upto 99%.
Electro Deionizer (EDI): Eliminates residual TDS & Conductivity from RO Permeate.
Advanced Research for Precision Water Management
We continuously invest in research and innovation to develop cutting-edge water treatment solutions tailored for the pharmaceutical industry. Working closely with leading pharmaceutical manufacturers, we ensure regulatory-compliant water systems that optimize production processes, maintain strict purity levels, and meet global accreditation standards. Our focus on automation, resource optimization, and operational excellence helps pharmaceutical businesses achieve efficiency and seamless compliance.
Commitment to Innovation
💧 Precision systems for perfect water quality.
💧 Smart automation for real-time compliance.
💧 Streamlined solutions to reduce downtime.
💧 Sustainable water management for efficiency.
Reliable & Efficient Solutions
💧 Advanced and fully automated treatment.
💧 Transparent process & real-time monitoring.
💧 Expert engineers in pharma water solutions.
💧 Eco-friendly and globally compliant systems.
